Lithium battery charging and discharging board with 5V 0.5A charging and 1.2 discharging-Module 84

2023-05-15 09:52:00

Original

393

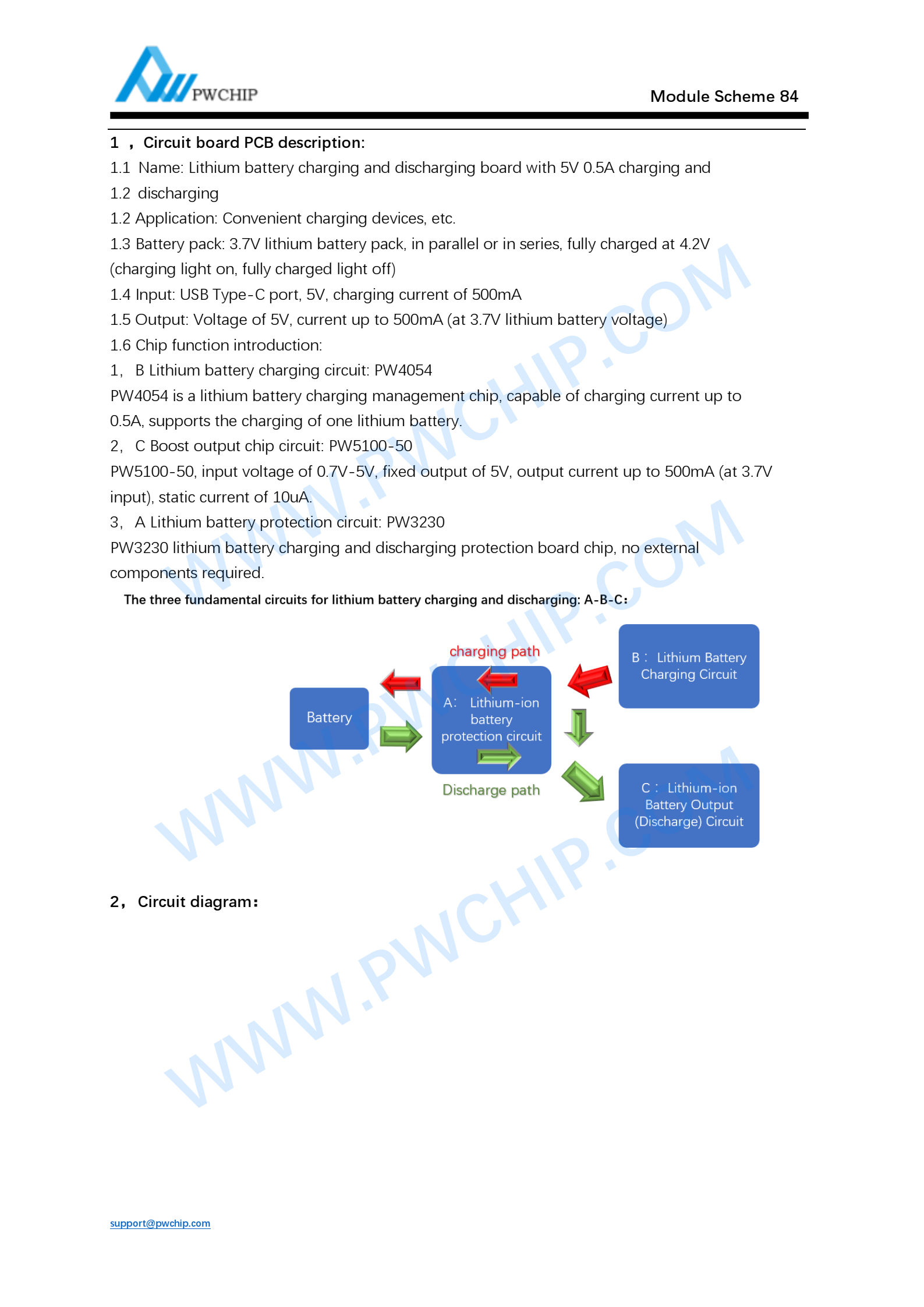

Summary : 1.1 Name: Lithium battery charging and discharging board with 5V 0.5A charging and1.2 discharging1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 3.7V lithium battery pack, in parallel or in series, fully charged at 4.2V(charging light on, fully charged light off)1.4 Input: USB Type-C port, 5V, charging current of 500mA1.5 Output: Voltage of 5V, current up to 500mA (at 3.7V lithium battery voltage)

84号密码是PWCHIP ，WWW.PWCHIP.COM.zip 0 下载
