  • Lithium Battery Charge and Discharge Board 5V0.5A Charge and Discharge, Input Surge Protection up to 40V-Module 83

Lithium Battery Charge and Discharge Board 5V0.5A Charge and Discharge, Input Surge Protection up to 40V-Module 83

2023-05-15 09:50:00
UA
Original
428

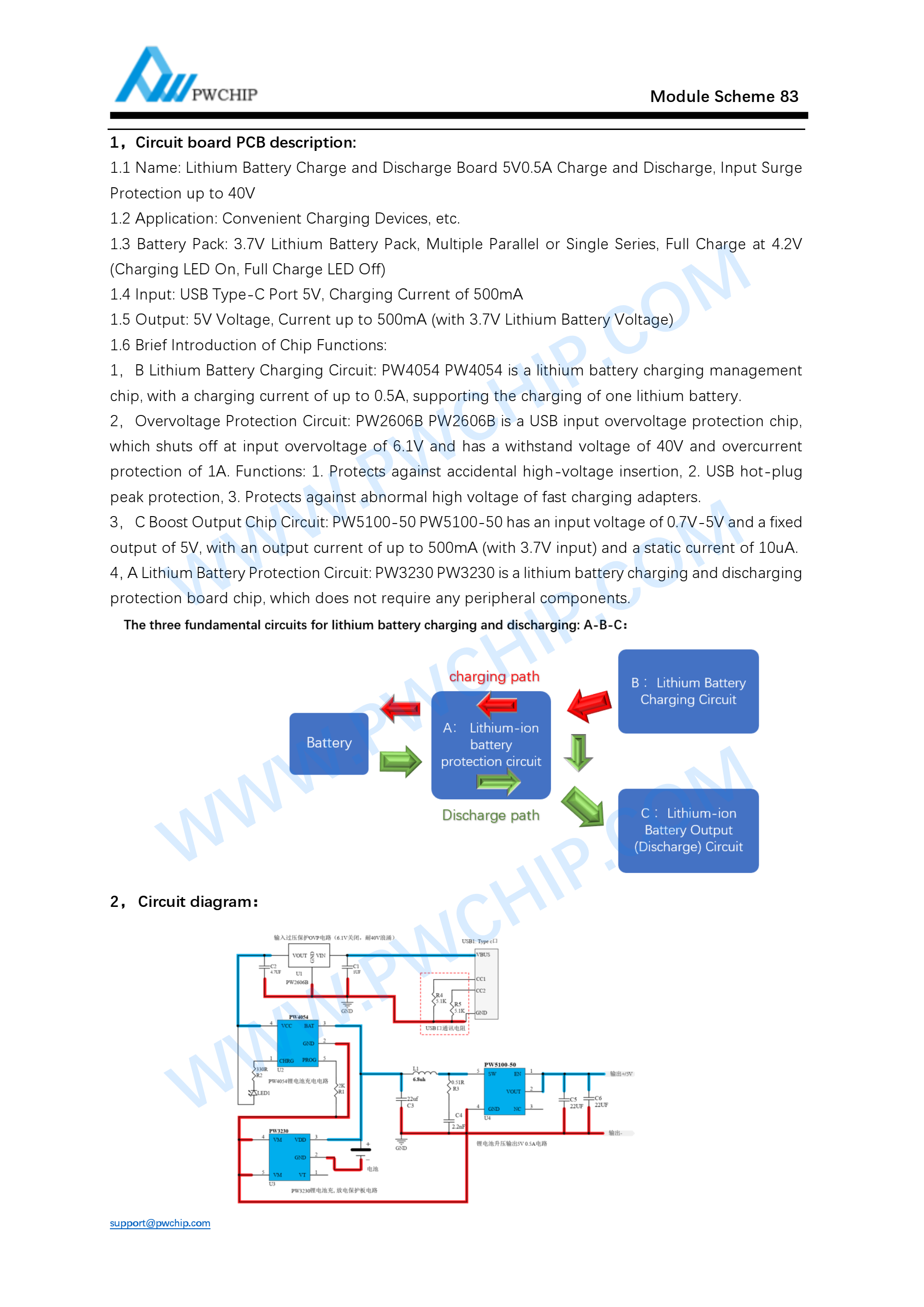

Summary : 1.1 Name: Lithium Battery Charge and Discharge Board 5V0.5A Charge and Discharge, Input SurgeProtection up to 40V1.2 Application: Convenient Charging Devices, etc.1.3 Battery Pack: 3.7V Lithium Battery Pack, Multiple Parallel or Single Series, Full Charge at 4.2V(Charging LED On, Full Charge LED Off)1.4 Input: USB Type-C Port 5V, Charging Current of 500mA1.5 Output: 5V Voltage, Current up to 500mA (with 3.7V Lithium Battery Voltage)
