Lithium battery charging and discharging board with 5V 0.5A charging and 5V 1A 1.2 discharging, with input OVP-Module 85
Lithium battery charging and discharging board with 5V 0.5A charging and 5V 1A 1.2 discharging, with input OVP-Module 85
2023-05-15 09:55:00
UA
Original
476

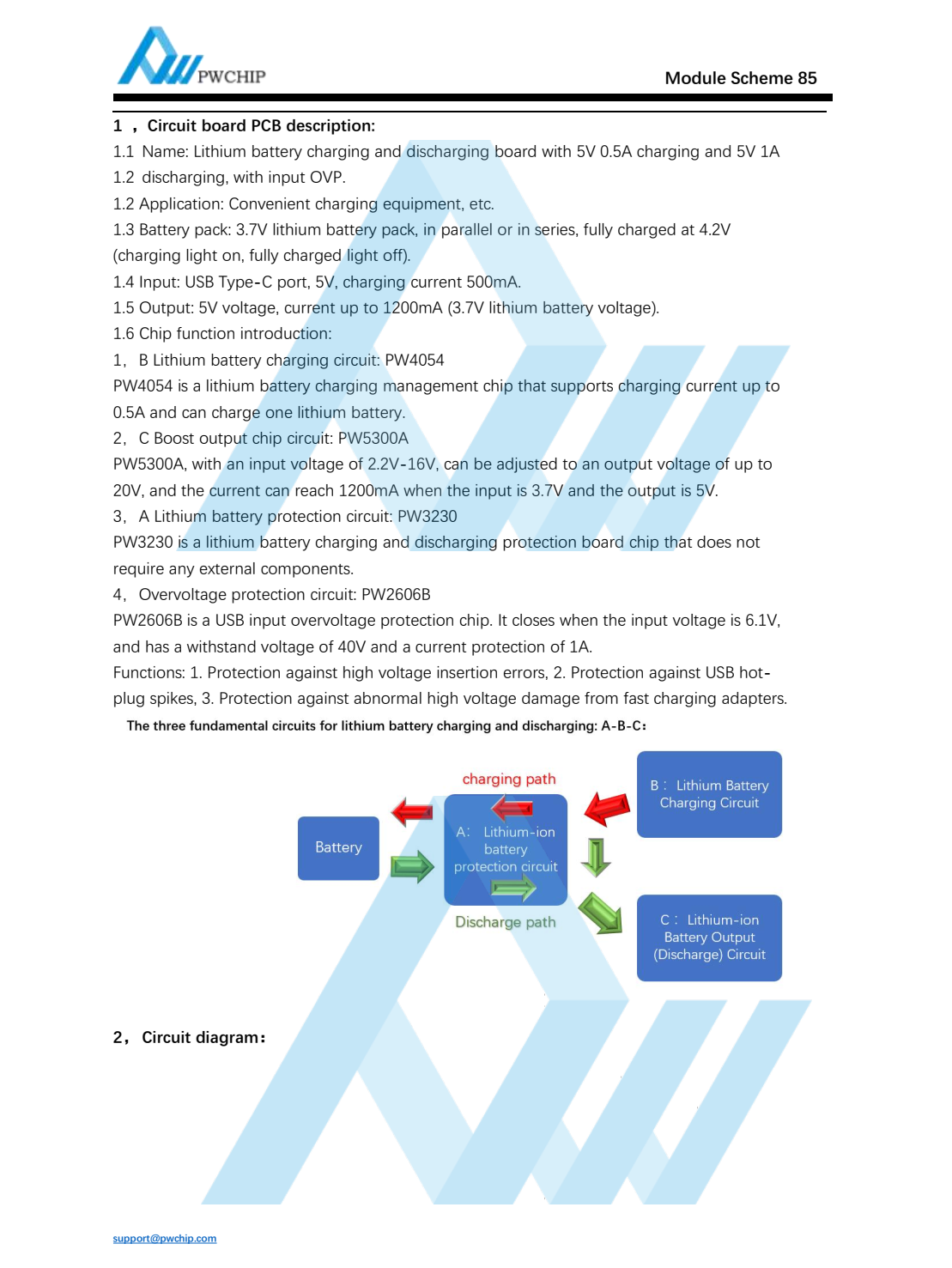

Summary : 1.1 Name: Lithium battery charging and discharging board with 5V 0.5A charging and 5V 1A1.2 discharging, with input OVP.1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 3.7V lithium battery pack, in parallel or in series, fully charged at 4.2V(charging light on, fully charged light off).1.4 Input: USB Type-C port, 5V, charging current 500mA.1.5 Output: 5V voltage, current up to 1200mA (3.7V lithium battery voltage).
