Two-cell Lithium Battery Protection Board with 6A Overcurrent and Battery Balancing-Module 142

2023-05-15 16:42:00

Original

407

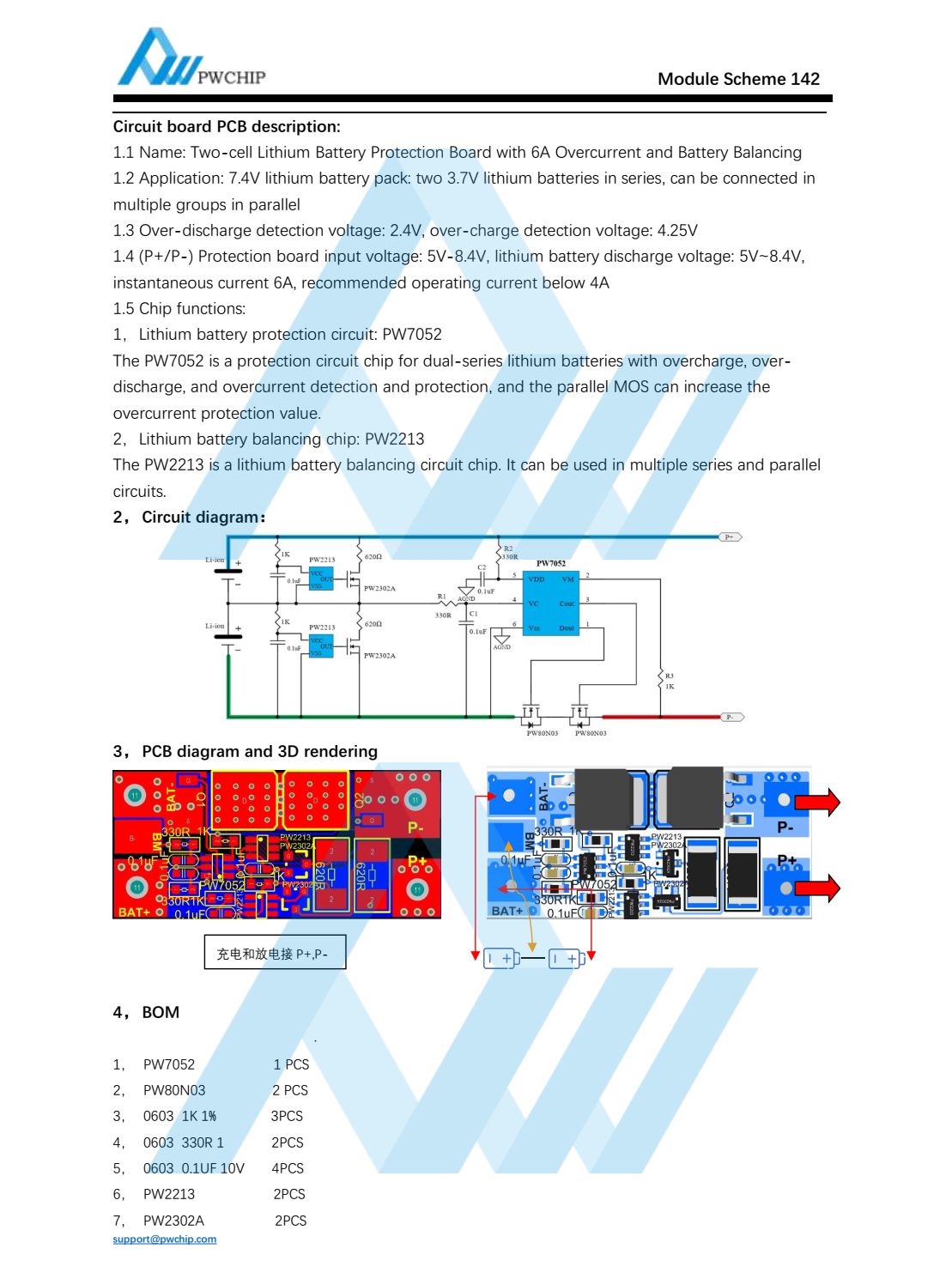

Summary : 1.1 Name: Two-cell Lithium Battery Protection Board with 6A Overcurrent and Battery Balancing1.2 Application: 7.4V lithium battery pack: two 3.7V lithium batteries in series, can be connected inmultiple groups in parallel1.3 Over-discharge detection voltage: 2.4V, over-charge detection voltage: 4.25V1.4 (P+/P-) Protection board input voltage: 5V-8.4V, lithium battery discharge voltage: 5V~8.4V,instantaneous current 6A, recommended operating current below 4A

142号密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
