Three-cell lithium battery protection board with 10A overcurrent protection and battery balancing circuit-Module 141

2023-05-15 16:39:00

Original

495

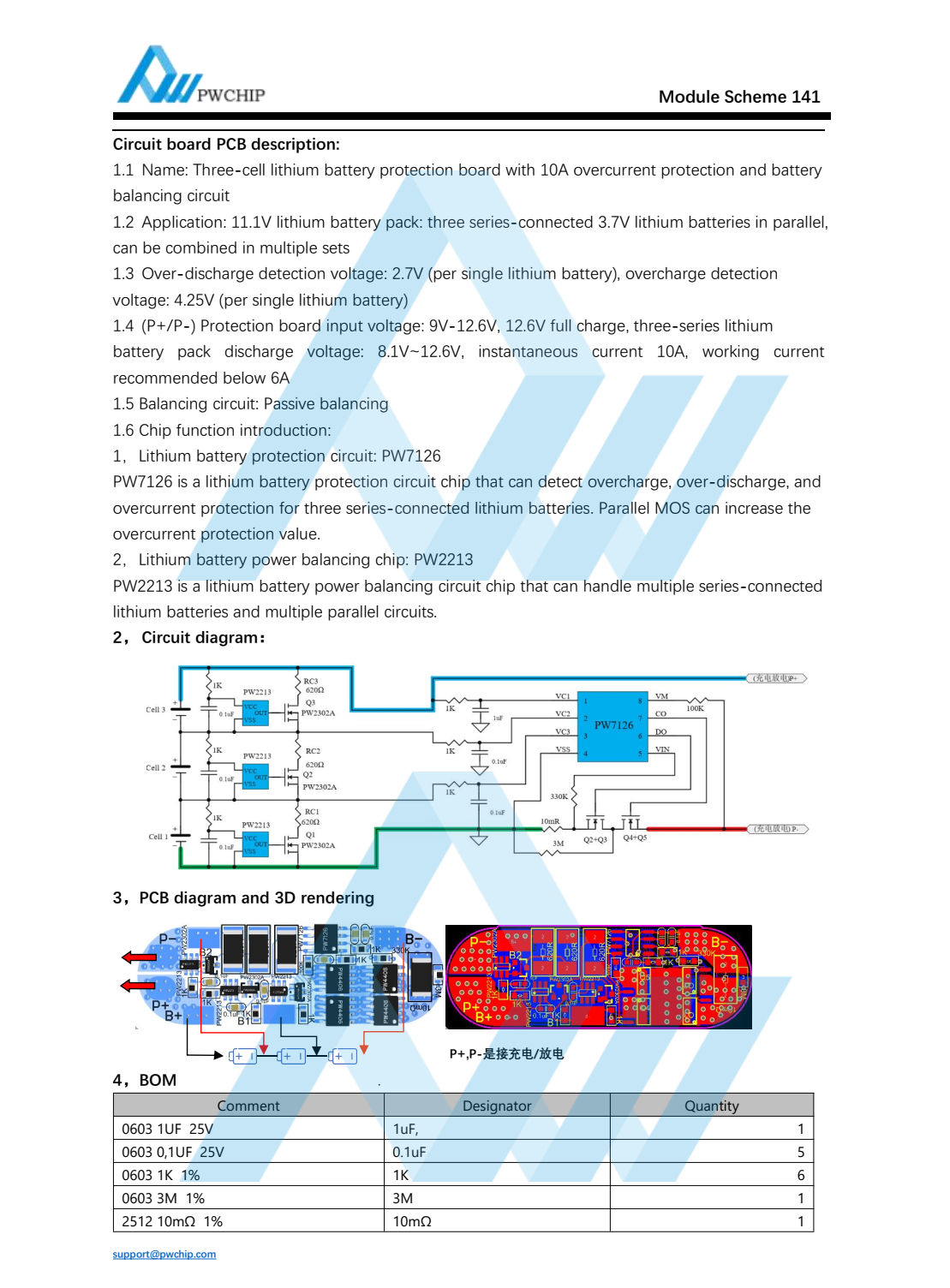

Summary : 1.1 Name: Three-cell lithium battery protection board with 10A overcurrent protection and batterybalancing circuit1.2 Application: 11.1V lithium battery pack: three series-connected 3.7V lithium batteries in parallel,can be combined in multiple sets1.3 Over-discharge detection voltage: 2.7V (per single lithium battery), overcharge detectionvoltage: 4.25V (per single lithium battery)1.4 (P+/P-) Protection board input voltage: 9V-12.6V, 12.6V full charge, three-series lithiumbattery pack discharge voltage: 8.1V~12.6V, instantaneous current 10A, working currentrecommended below 6A1.5 Balancing circuit: Passive balancing

141号密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
