Lithium battery charging and boosting board with 5V3A charging and boosting output, withstand voltage of 36V-Module 97
Lithium battery charging and boosting board with 5V3A charging and boosting output, withstand voltage of 36V-Module 97
2023-05-15 11:13:00
UA
Original
417

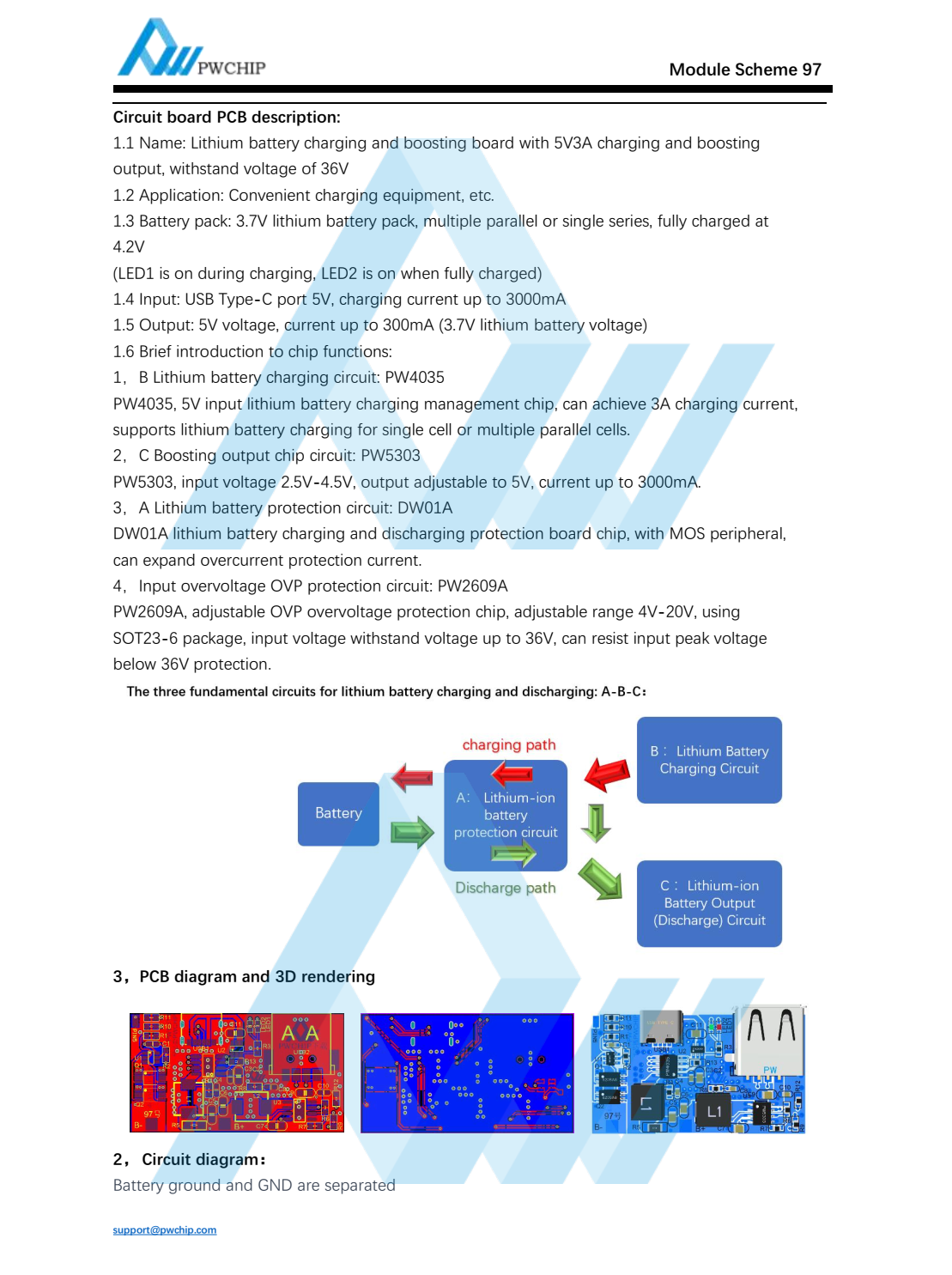

Summary : 1.1 Name: Lithium battery charging and boosting board with 5V3A charging and boostingoutput, withstand voltage of 36V1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 3.7V lithium battery pack, multiple parallel or single series, fully charged at4.2V(LED1 is on during charging, LED2 is on when fully charged)1.4 Input: USB Type-C port 5V, charging current up to 3000mA1.5 Output: 5V voltage, current up to 300mA (3.7V lithium battery voltage)
