Lithium battery charging and discharging board, 5V 2A charging and boost discharge 5V 2.4A, input voltage up to 36V-Module 96
Lithium battery charging and discharging board, 5V 2A charging and boost discharge 5V 2.4A, input voltage up to 36V-Module 96
2023-05-15 11:10:00
UA
Original
489

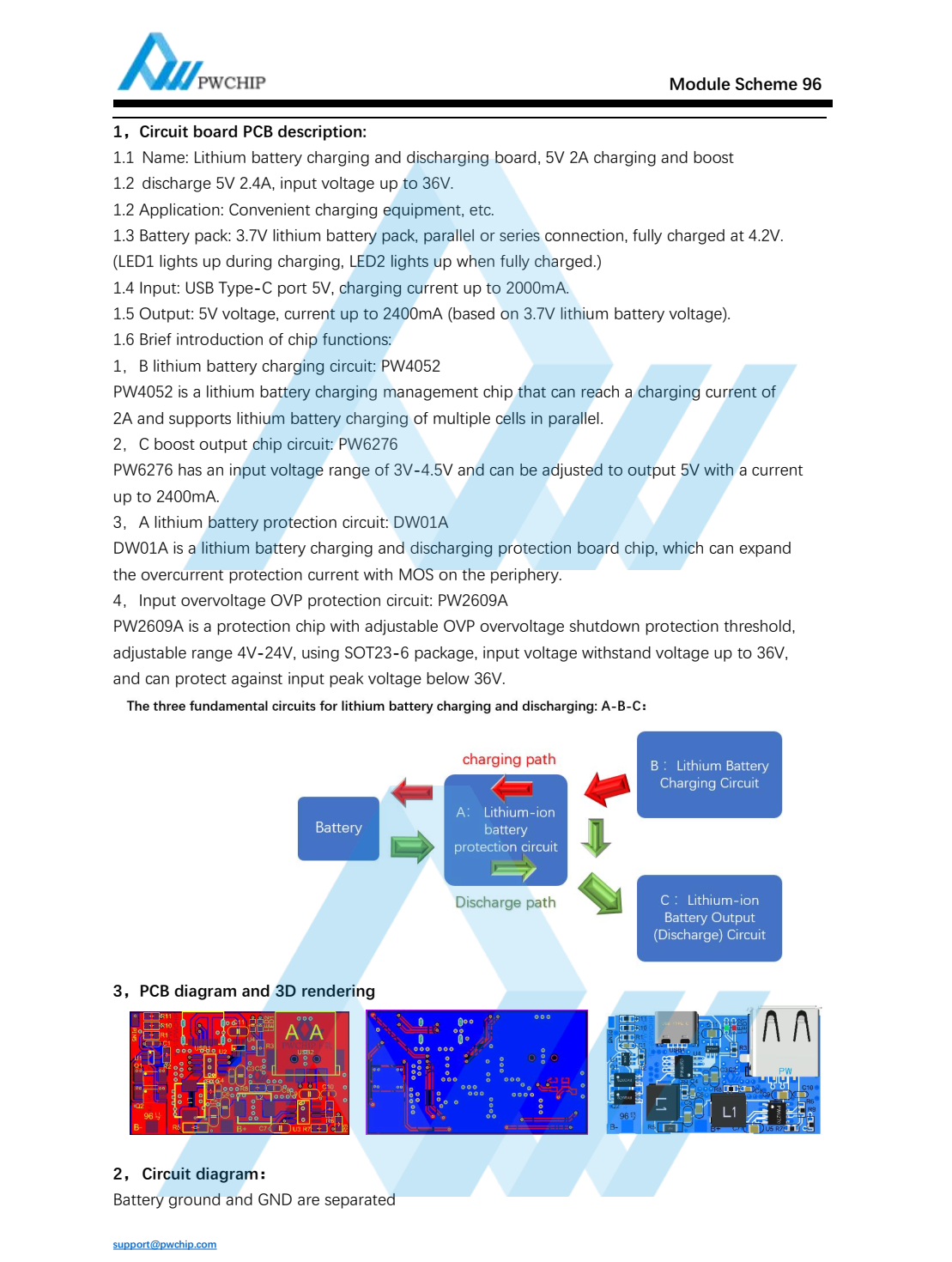

Summary : 1.1 Name: Lithium battery charging and discharging board, 5V 2A charging and boost discharge 5V 2.4A, input voltage up to 36V.1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 3.7V lithium battery pack, parallel or series connection, fully charged at 4.2V.(LED1 lights up during charging, LED2 lights up when fully charged.)1.4 Input: USB Type-C port 5V, charging current up to 2000mA.1.5 Output: 5V voltage, current up to 2400mA (based on 3.7V lithium battery voltage).
