PW2330 Buck Circuit board

2023-05-12 15:05:41
lu
Original
296

1Circuit board  PCB description

1.1  Name PW2330 BuckCircuit board

1.2  Applications Voltage buck converterboard

1.3  VIN input voltage 4.5V-30V

1.4  VOUT output voltage 5V3.3V9V12V

1.5  Introduction to Chip Functions

1, Buck chipPW2330

PW2330 input  voltage is 4.5V~30V, you can set the constant voltage output voltage value by  R1,R2, current up to 3A, package ESOP8.

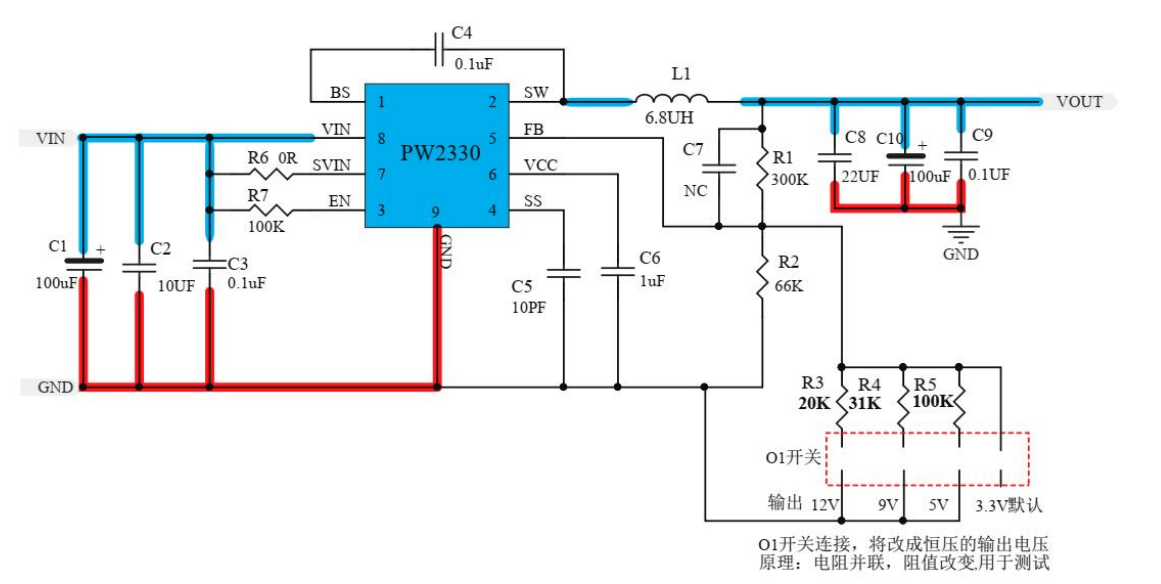

2 Circuit diagram



Note 1: The  blue thick line is the power trace, C1,C3 input capacitor and C8,C9 output  capacitor must not be omitted. At the same time C1,C3 should be placed next to 8pins, as close as possible..

Note 2: The  red thick line is the power ground, the main points of the  drawing board: to be  wide, the shorter the distance between the connecting loops at each point.

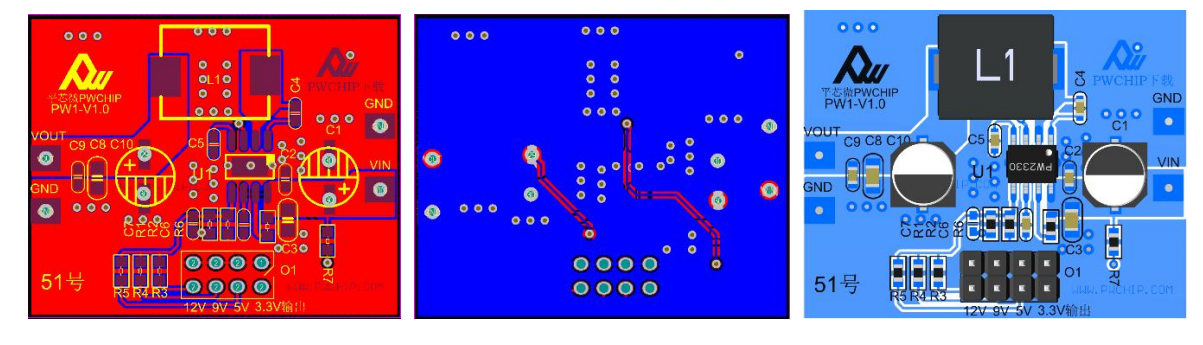

3, PCB diagram and 3Ddisplay diagram



4 BOM Material List                                            .

Comment

Designator

Footprint

Quantity

100uF 35V 6.3*7.7mm Electrolytic capacitance

C1

SMD

1

0603 0.1UF  50V

C2, C4, C9

0603A

3

0805 10UF 50V

C3

0805C

1

0603 10PF  25V

C5

0603A

1

0603 1UF 25V

C6

0603A

1

100uF 25V 6.3*7.7mm Electrolytic capacitance

C7

SMD

1

NC

C7

0603A

1

0805 10UF 25V

C8

0805C

1

1050  6.8UH  Integrated molded inductor

L1

SMD

1

Alignment 2 lines 4PIN-2.56mm

O1

DIP

1

0603 300K  1%

R1

0603SL

1

0603 66K  1%

R2

0603SL

1

0603 20K  1%

R3

0603SL

1

0603 31K  1%

R4

0603SL

1

0603 100K  1%

R5

0603SL

1

0603 0R  1%

R6

0603SL

1

0603 100K  5%

R7

0603SL

1

PW2330

U1

ESOP8

1
