Compatible with USB PD fast charging input single-cell lithium battery 2A charging chip solution-Module1
Compatible with USB PD fast charging input single-cell lithium battery 2A charging chip solution-Module1
2023-05-12 15:17:00
杨工
Original
507

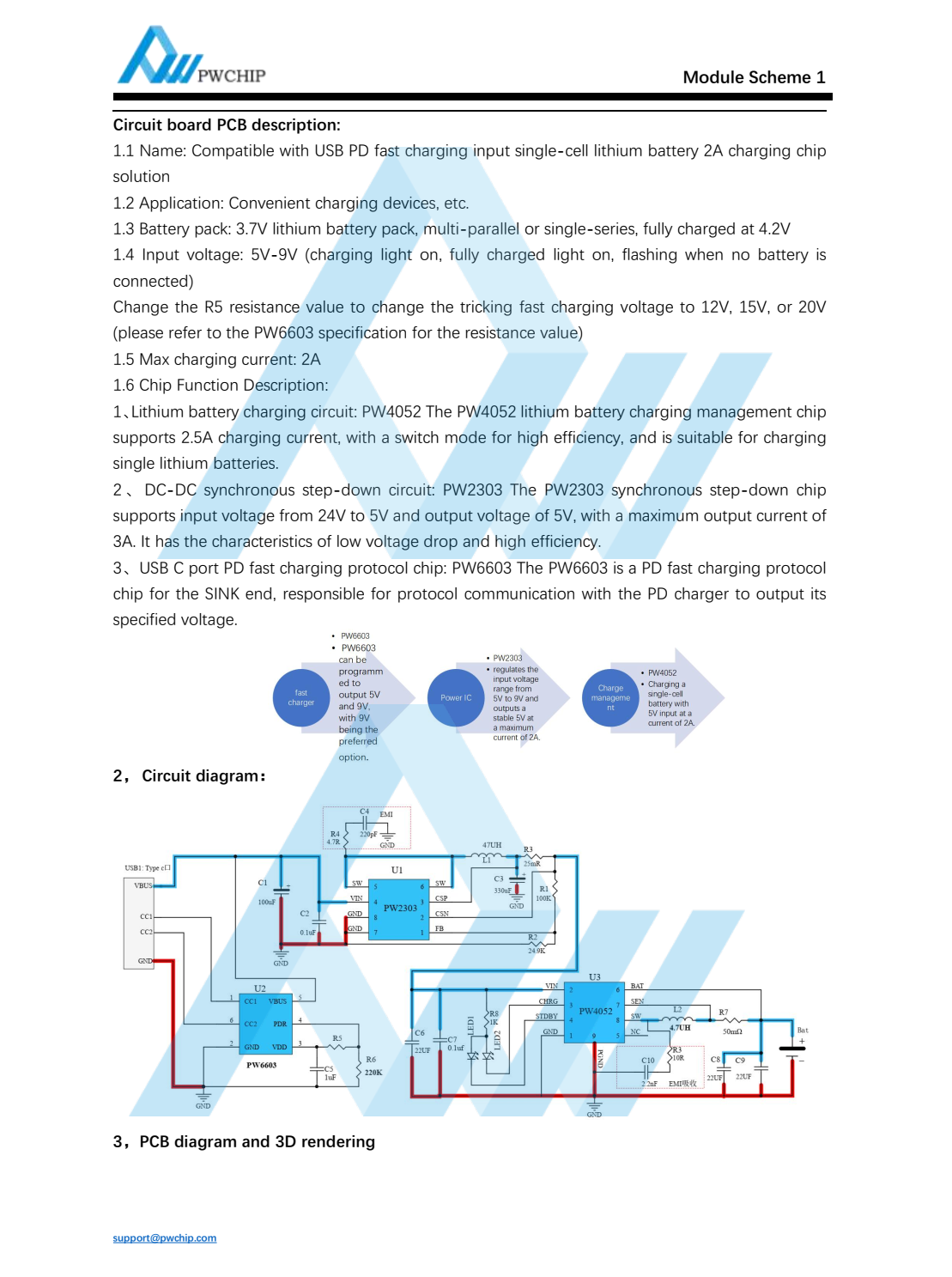

Summary : 1.1 Name: Compatible with USB PD fast charging input single-cell lithium battery 2A charging chipsolution1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 3.7V lithium battery pack, multi-parallel or single-series, fully charged at 4.2V1.4 Input voltage: 5V-9V (charging light on, fully charged light on, flashing when no battery isconnected)Change the R5 resistance value to change the tricking fast charging voltage to 12V, 15V, or 20V(please refer to the PW6603 specification for the resistance value)1.5 Max charging current: 2A
