Support PD/QC fast charging protocol high voltage 5V-9V three series 12.6V lithium battery 1A charging board
- 2023-05-12 15:09:59
- lu Original
- 553
1 Circuit board PCB description：
1.1 Name ： Support PD/QC fast charging protocol highvoltage 5V-9V three series 12.6V lithium battery 1A charging board
1.2 Applications:Convenient charging devices, etc.
1.3 Battery pack: 11.1V lithium battery pack, three series 3.7Vlithium battery ， full 12.6V
1.4 Input voltage: 5V-9V（ When charging, the light will be on, and when it is fully charged,the light will turn）
1.5 Max charging current： 1.4A
1.6 Introduction to Chip Functions ：
1， Lithium battery charging circuit：PW4040
PW4040 Lithium battery charge management chip， Up to 3.5Acharging current， adjustable output charging voltage,support wide input voltage
2， USB C port PD/QC fast charge Protocol chip： PW6605
PW6605 is a PD/QC fast charge protocol chip, SINK terminal,responsible for protocol communication PD charger to output its specified voltage

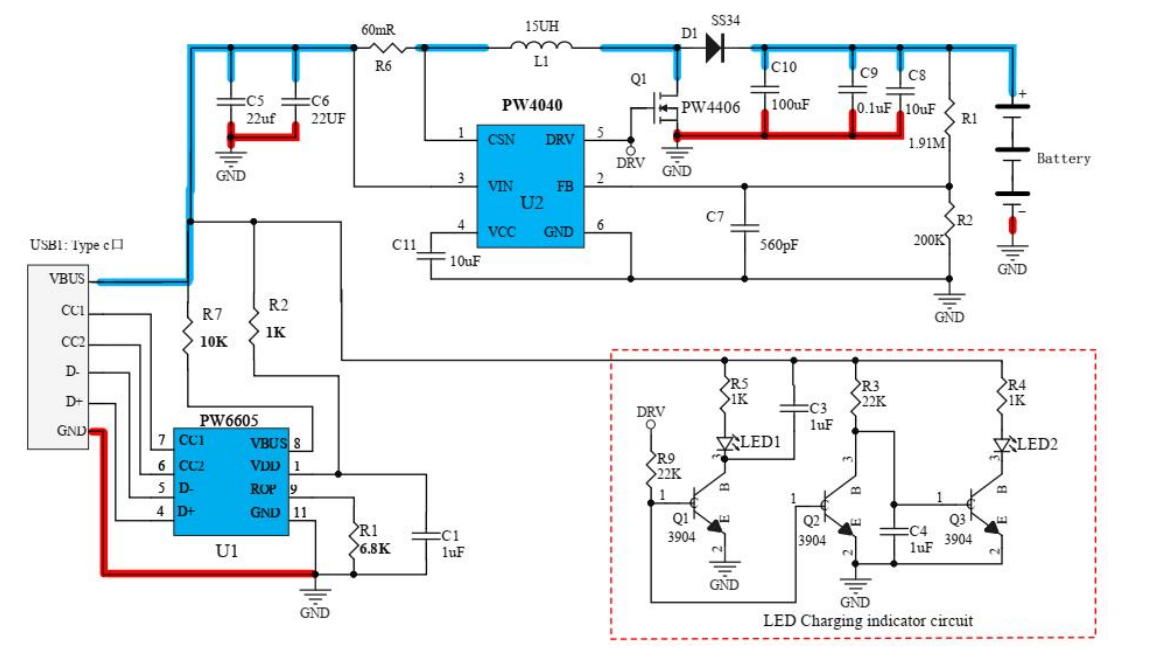

2， Circuit diagram ：
PCB layout is divided into two parts: signal controlcircuit + power circuit
Note 1： The blue thick line is the power trace, the layout should be wide,； SW part (Q1, D1, L1 three devices connected) is not only the power output, but also it is a noise source, the layout should be wide and the area shouldbe small.
Note 2： The red thick line is the power ground, the main points of the drawing board: to bewide, the shorter the distance between the connecting loops at each point, the more holes are punched in the ground.(input, C5, C6, C10, C9, C8,Q1 and battery ground)
3， PCB diagram and 3Ddisplay diagram
4 ， BOM Material List .
|
Comment |
Designator |
Footprint |
Quantity |
|
0603 1uF 25V |
C1,C3,C4 |
0603A |
3 |
|
0805 22uF 25V |
C5, C6 |
0805C |
2 |
|
0603 270pF 25V |
C7 |
0603A |
1 |
|
0805 10uF 25V |
C8 |
0805C |
1 |
|
0603 0.1uF 25V |
C9 |
0603A |
1 |
|
100uF 25V SMD Aluminum Capacitors 6.3MM |
C10 |
SMD |
1 |
|
0603 10uF 25V |
C11 |
0603A |
1 |
|
SS34 SMB |
D1 |
SMB |
1 |
|
Integrated molded inductor 0650 15UH |
L1 |
SMD |
1 |
|
LED Red 0603 |
LED1, LED2 |
0603A |
2 |
|
MMBT3904 |
Q1, Q2, Q3 |
SOT23-3 |
3 |
|
PW4406 PWCHIP MOS tube |
Q4 |
SOP8 |
1 |
|
0603 1% 6.8k |
R1 |
0603SL |
1 |
|
0603 1.91M 1% |
R8 |
0603SL |
1 |
|
0603 1k 5% |
R2 |
0603SL |
1 |
|
0603 200K 1% |
R10 |
0603SL |
1 |
|
0603 22K 1% |
R3, R9 |
0603SL |
2 |
|
0603 1K 5% |
R4, R5 |
0603SL |
2 |
|
1210 60mR 1% |
R6 |
1210R |
1 |
|
0603 10k 1% |
R7 |
0603SL |
1 |
|
PW6605 PWCHIP Fast Chip |
U1 |
ESOP10 |
3 |
|
PW4040 PWCHIP charge chip |
U2 |
SOT23-6 |
1 |
|
USB TYPE C 16PIN |
USB1 |
USB |
1 |
