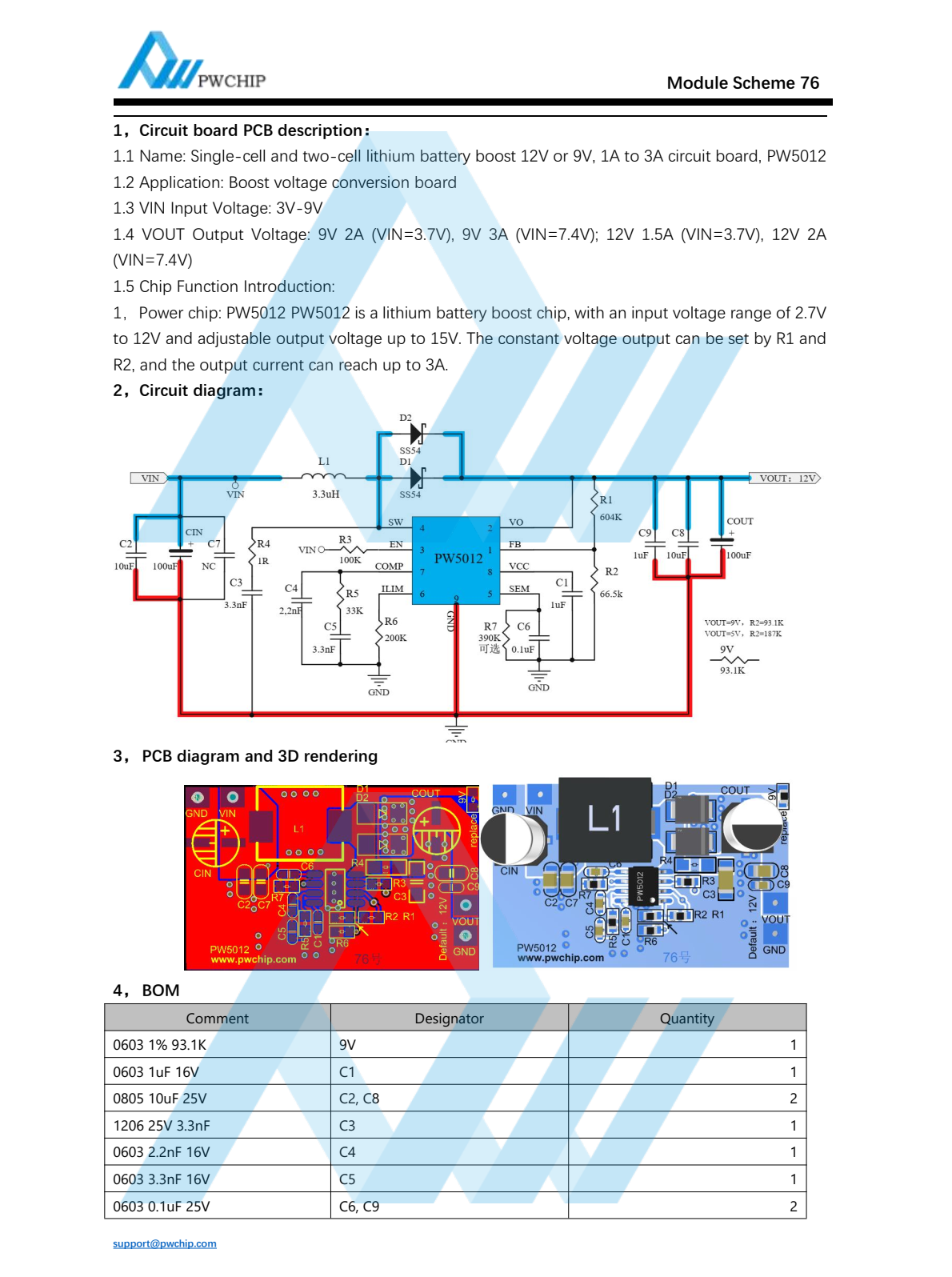

Single-cell and two-cell lithium battery boost 12V or 9V, 1A to 3A circuit board, PW5012-Module 76

2023-05-23 16:20:00
杨工
Original
593
Summary : 1.1 Name: Single-cell and two-cell lithium battery boost 12V or 9V, 1A to 3A circuit board, PW50121.2 Application: Boost voltage conversion board1.3 VIN Input Voltage: 3V-9V1.4 VOUT Output Voltage: 9V 2A (VIN=3.7V), 9V 3A (VIN=7.4V); 12V 1.5A (VIN=3.7V), 12V 2A(VIN=7.4V)
