5S Lithium Battery Protection Board, 20A Overcurrent, with Battery Balancing Circuit-Module 144

2023-05-15 17:08:00

Original

480

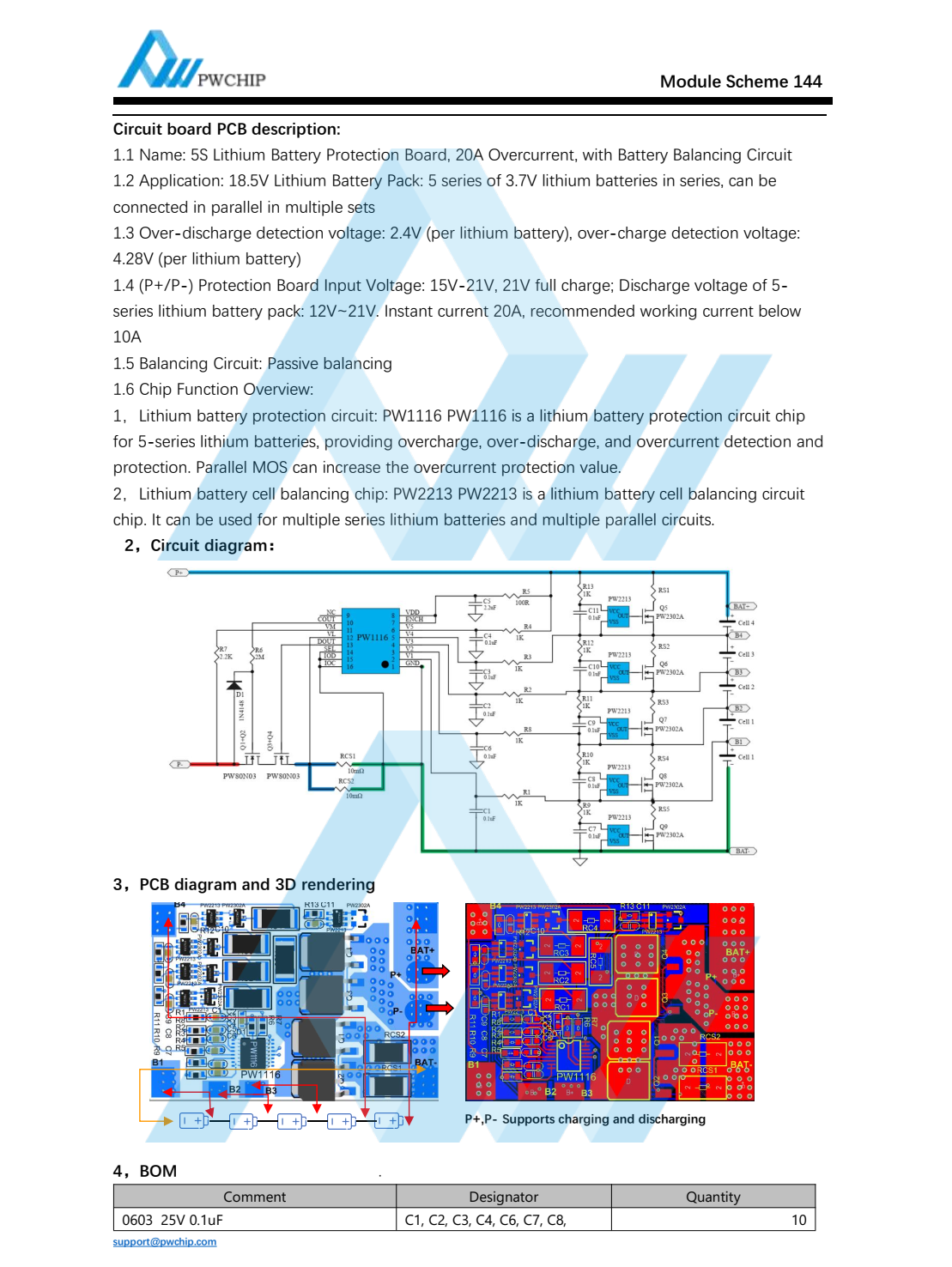

Summary : 1.1 Name: 5S Lithium Battery Protection Board, 20A Overcurrent, with Battery Balancing Circuit1.2 Application: 18.5V Lithium Battery Pack: 5 series of 3.7V lithium batteries in series, can beconnected in parallel in multiple sets1.3 Over-discharge detection voltage: 2.4V (per lithium battery), over-charge detection voltage:4.28V (per lithium battery)1.4 (P+/P-) Protection Board Input Voltage: 15V-21V, 21V full charge; Discharge voltage of 5-series lithium battery pack: 12V~21V. Instant current 20A, recommended working current below10A1.5 Balancing Circuit: Passive balancing

144号密码是PWCHIP ，WWW.PWCHIP.COM.zip 2 下载
