Three-cell series lithium battery charging and discharging board, with 5V2.4A input and output through USB-C port-Module 128
Three-cell series lithium battery charging and discharging board, with 5V2.4A input and output through USB-C port-Module 128
2023-05-15 15:36:00
UA
Original
467

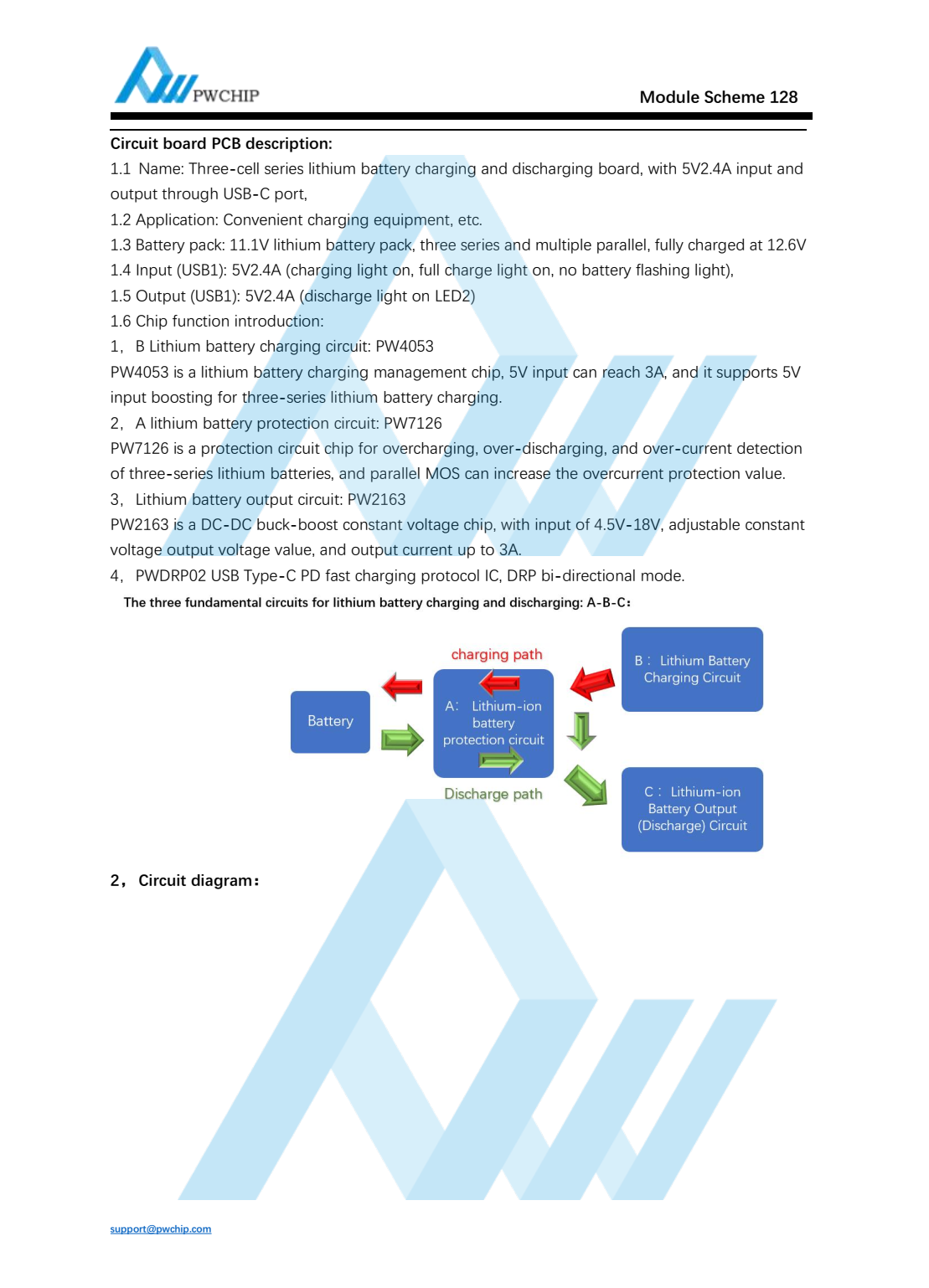

Summary : 1.1 Name: Three-cell series lithium battery charging and discharging board, with 5V2.4A input andoutput through USB-C port,1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 11.1V lithium battery pack, three series and multiple parallel, fully charged at 12.6V1.4 Input (USB1): 5V2.4A (charging light on, full charge light on, no battery flashing light),1.5 Output (USB1): 5V2.4A (discharge light on LED2)
