PW4000 Boost/Buck Charging Chip for 5V-12V Input and 3-Cell Lithium Iron Phosphate Battery with Fast Charge PD Support-Module 119
PW4000 Boost/Buck Charging Chip for 5V-12V Input and 3-Cell Lithium Iron Phosphate Battery with Fast Charge PD Support-Module 119
2023-05-15 14:31:00
UA
Original
460

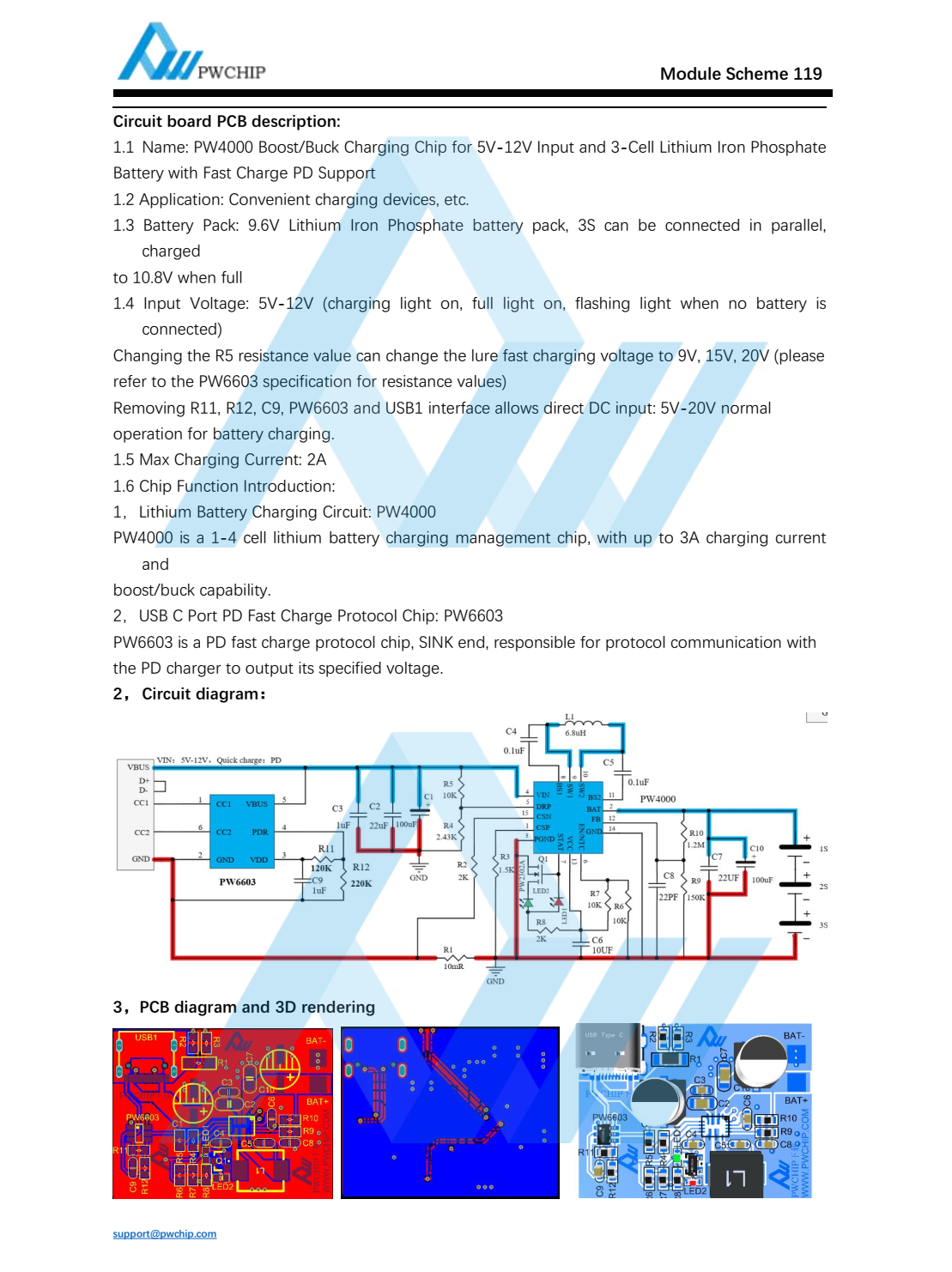

Summary : 1.1 Name: PW4000 Boost/Buck Charging Chip for 5V-12V Input and 3-Cell Lithium Iron PhosphateBattery with Fast Charge PD Support1.2 Application: Convenient charging devices, etc.1.3 Battery Pack: 9.6V Lithium Iron Phosphate battery pack, 3S can be connected in parallel,chargedto 10.8V when full1.4 Input Voltage: 5V-12V (charging light on, full light on, flashing light when no battery isconnected)Changing the R5 resistance value can change the lure fast charging voltage to 9V, 15V, 20V (pleaserefer to the PW6603 specification for resistance values)Removing R11, R12, C9, PW6603 and USB1 interface allows direct DC input: 5V-20V normaloperation for battery charging.
