Two-series lithium battery charging and discharging board, 5V2A output, input 5V-24V charging-Module 107

2023-05-15 13:21:00

Original

452

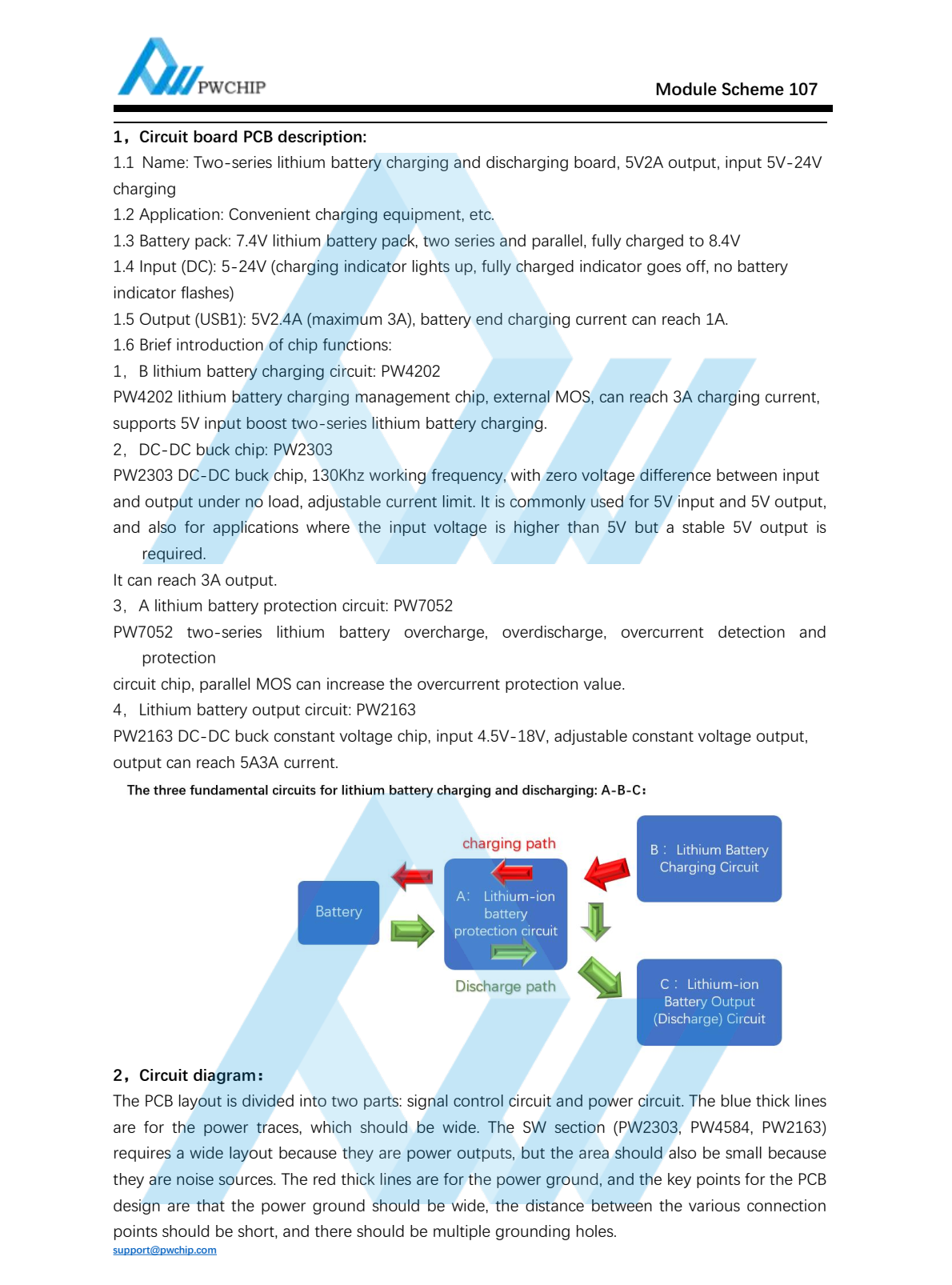

Summary : 1.1 Name: Two-series lithium battery charging and discharging board, 5V2A output, input 5V-24Vcharging1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 7.4V lithium battery pack, two series and parallel, fully charged to 8.4V1.4 Input (DC): 5-24V (charging indicator lights up, fully charged indicator goes off, no batteryindicator flashes)1.5 Output (USB1): 5V2.4A (maximum 3A), battery end charging current can reach 1A.

107号密码是PWCHIP ，WWW.PWCHIP.COM.zip 0 下载
