Two-cell lithium battery charging and discharging board, 5V2A discharge, 12V-24V input step-down charging-Module 105

2023-05-15 13:05:00

Original

452

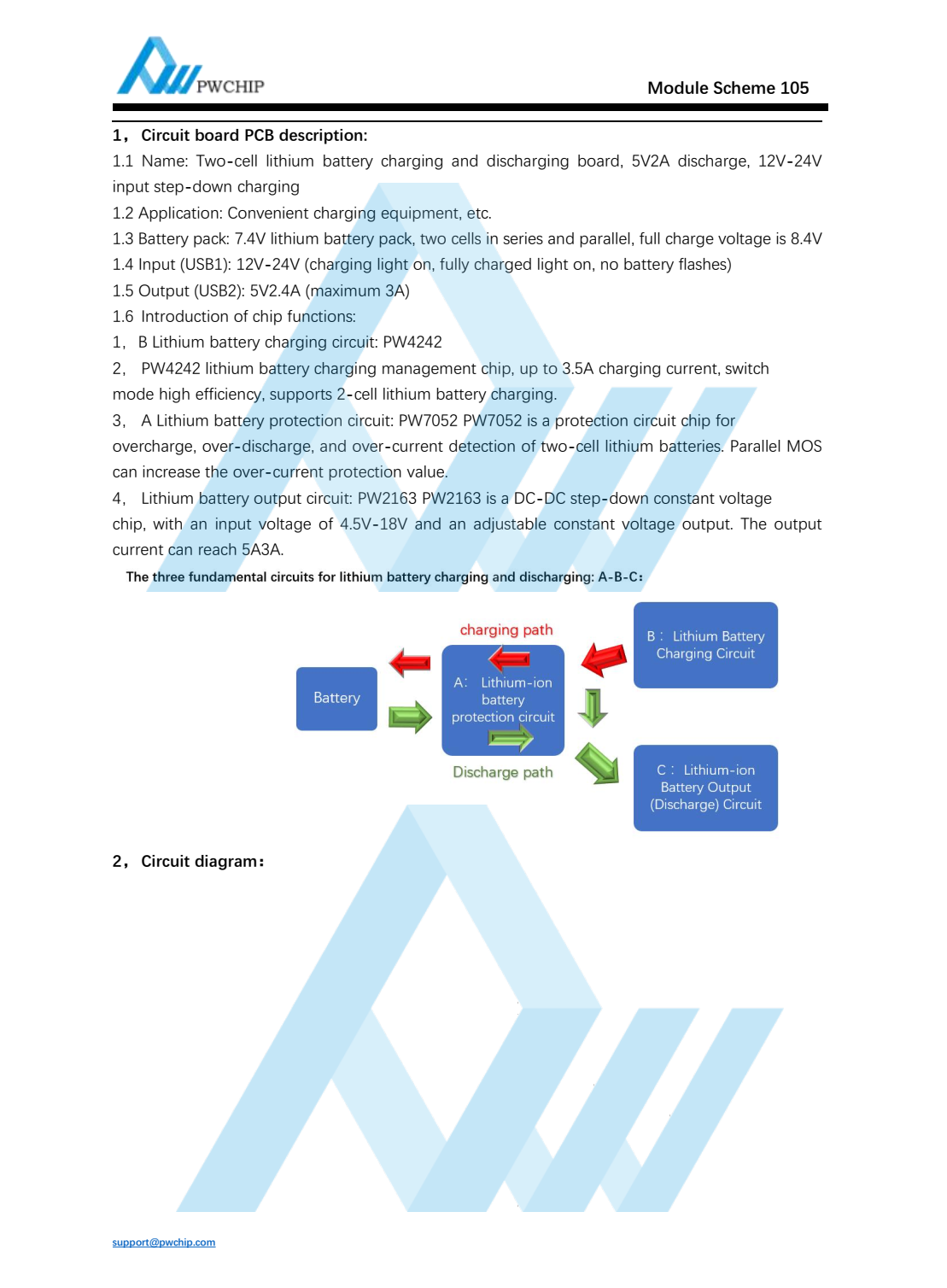

Summary : 1.1 Name: Two-cell lithium battery charging and discharging board, 5V2A discharge, 12V-24Vinput step-down charging1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 7.4V lithium battery pack, two cells in series and parallel, full charge voltage is 8.4V1.4 Input (USB1): 12V-24V (charging light on, fully charged light on, no battery flashes)1.5 Output (USB2): 5V2.4A (maximum 3A)

105号密码是PWCHIP ，WWW.PWCHIP.COM.zip 0 下载
