Two-Cell Series Lithium Battery Charging and Discharging Board, 5V2A Input and Output, 36V Input Protection-Module 101

2023-05-15 11:34:00
UA
Original
383

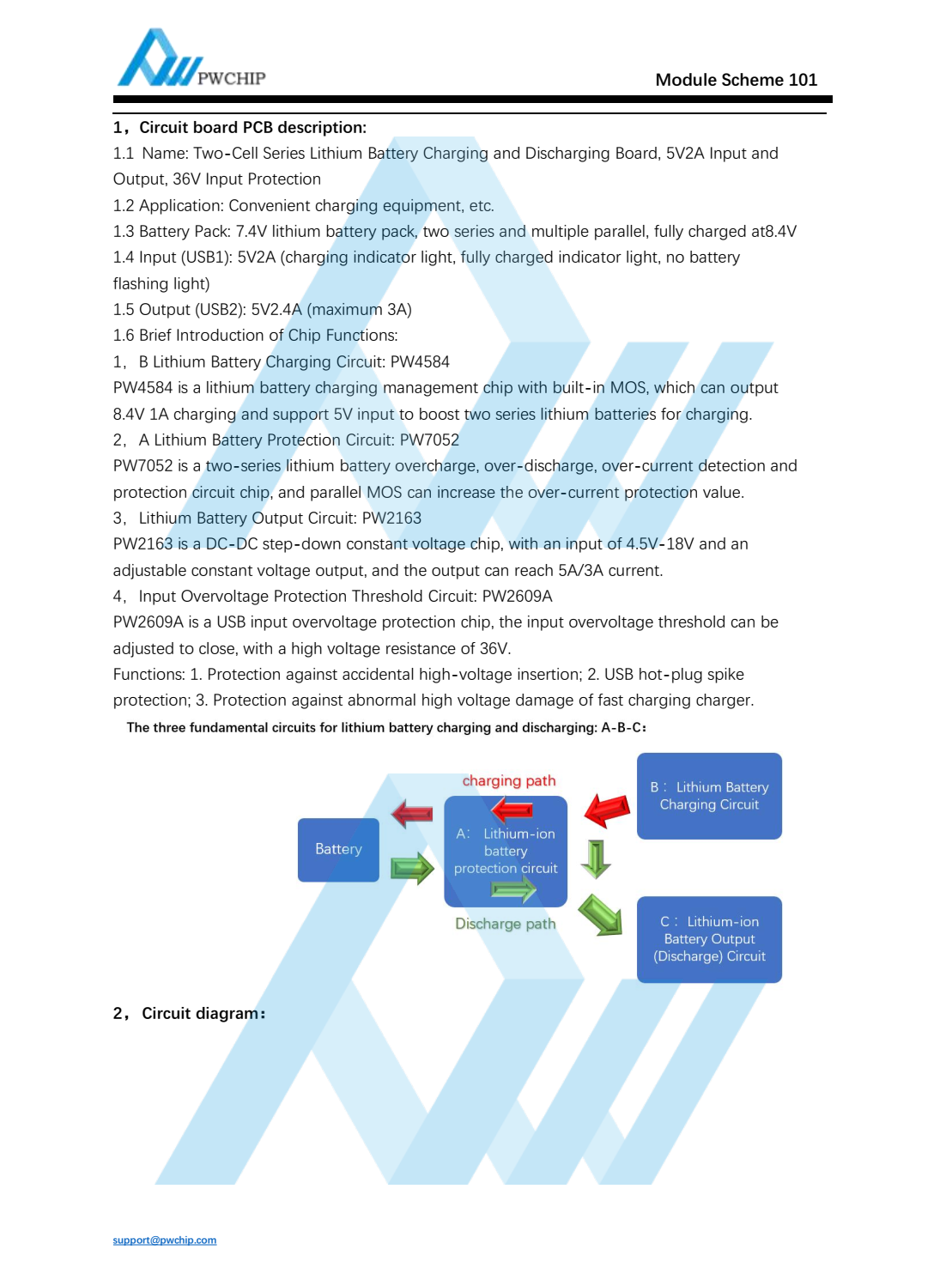

Summary : 1.1 Name: Two-Cell Series Lithium Battery Charging and Discharging Board, 5V2A Input andOutput, 36V Input Protection1.2 Application: Convenient charging equipment, etc.1.3 Battery Pack: 7.4V lithium battery pack, two series and multiple parallel, fully charged at8.4V1.4 Input (USB1): 5V2A (charging indicator light, fully charged indicator light, no batteryflashing light)1.5 Output (USB2): 5V2.4A (maximum 3A)
