Lithium battery charging and discharging board with 5V 0.5A charging and 5V 1A discharging, with input OVP-Module 94
Lithium battery charging and discharging board with 5V 0.5A charging and 5V 1A discharging, with input OVP-Module 94
2023-05-15 11:01:00
UA
Original
388

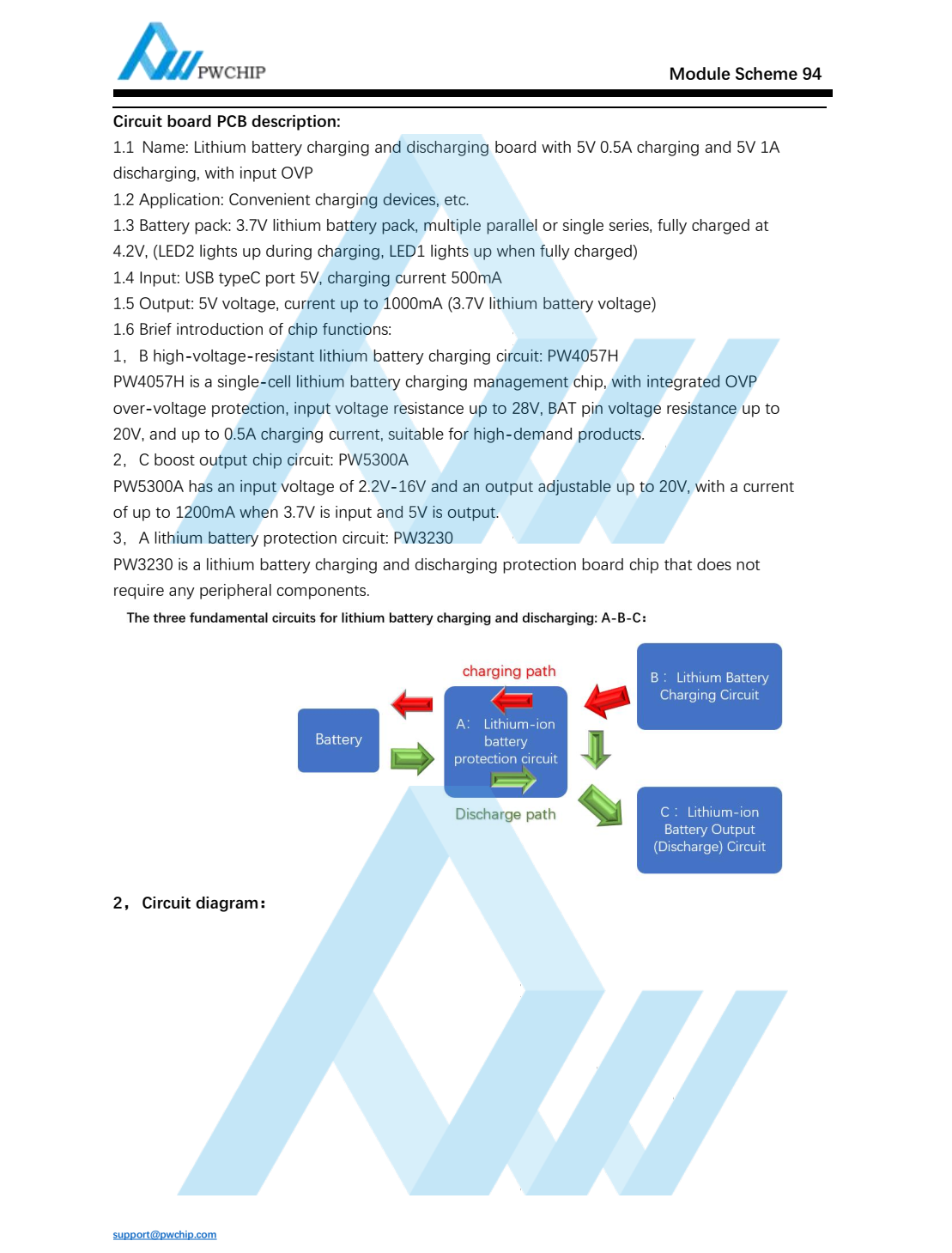

Summary : 1.1 Name: Lithium battery charging and discharging board with 5V 0.5A charging and 5V 1Adischarging, with input OVP1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 3.7V lithium battery pack, multiple parallel or single series, fully charged at4.2V, (LED2 lights up during charging, LED1 lights up when fully charged)1.4 Input: USB typeC port 5V, charging current 500mA1.5 Output: 5V voltage, current up to 1000mA (3.7V lithium battery voltage)
