Lithium battery charging and discharging board with 5V1A charging and 5V1A-Module 89
Lithium battery charging and discharging board with 5V1A charging and 5V1A-Module 89
2023-05-15 10:20:00
UA
Original
380

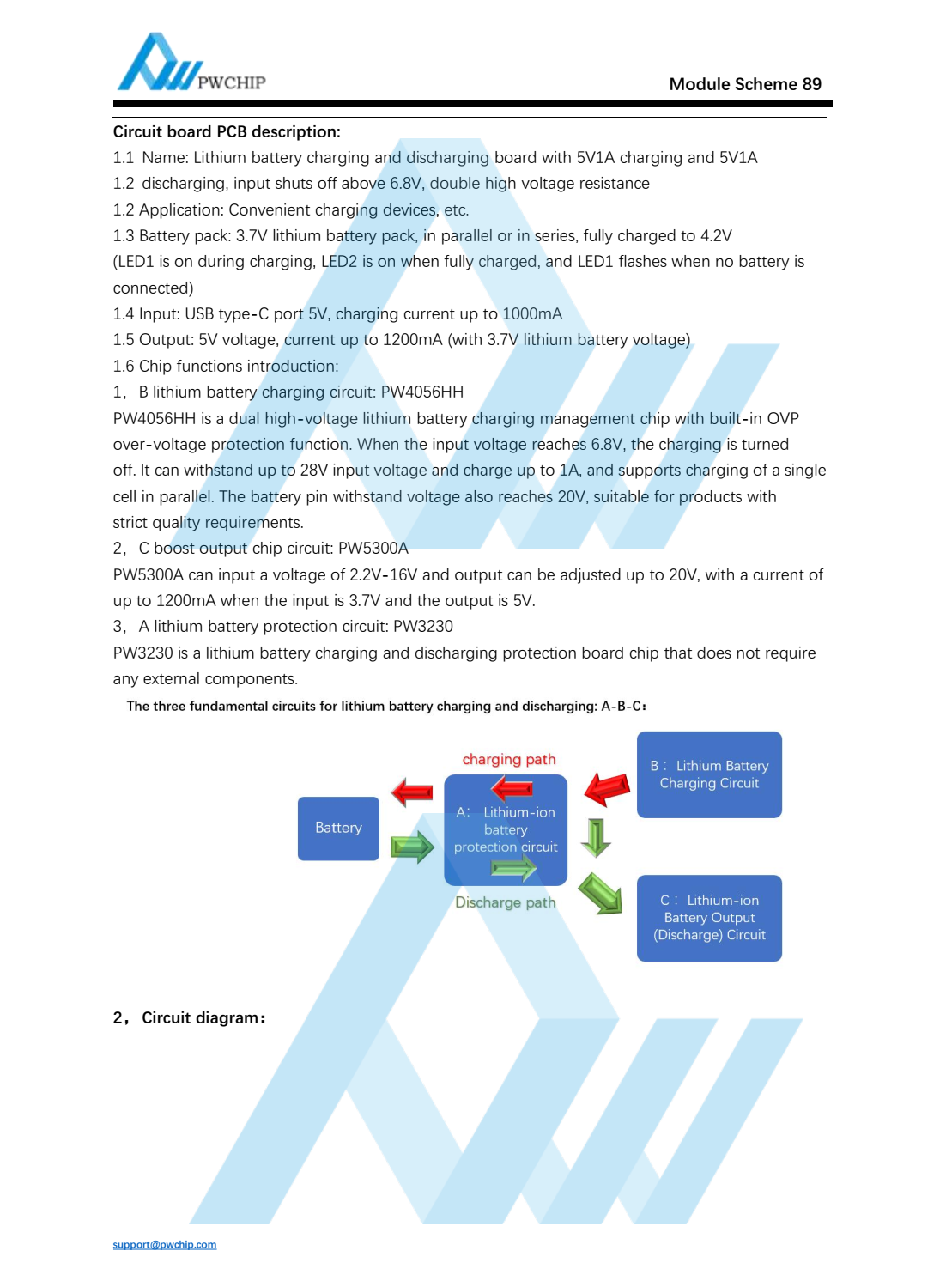

Summary : 1.1 Name: Lithium battery charging and discharging board with 5V1A charging and 5V1A discharging, input shuts off above 6.8V, double high voltage resistance1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 3.7V lithium battery pack, in parallel or in series, fully charged to 4.2V(LED1 is on during charging, LED2 is on when fully charged, and LED1 flashes when no battery isconnected)1.4 Input: USB type-C port 5V, charging current up to 1000mA1.5 Output: 5V voltage, current up to 1200mA (with 3.7V lithium battery voltage)
