PW2902 Step-down Circuit Board-Module 56
PW2902 Step-down Circuit Board-Module 56
2023-05-13 15:03:00
UA
Original
470
Summary

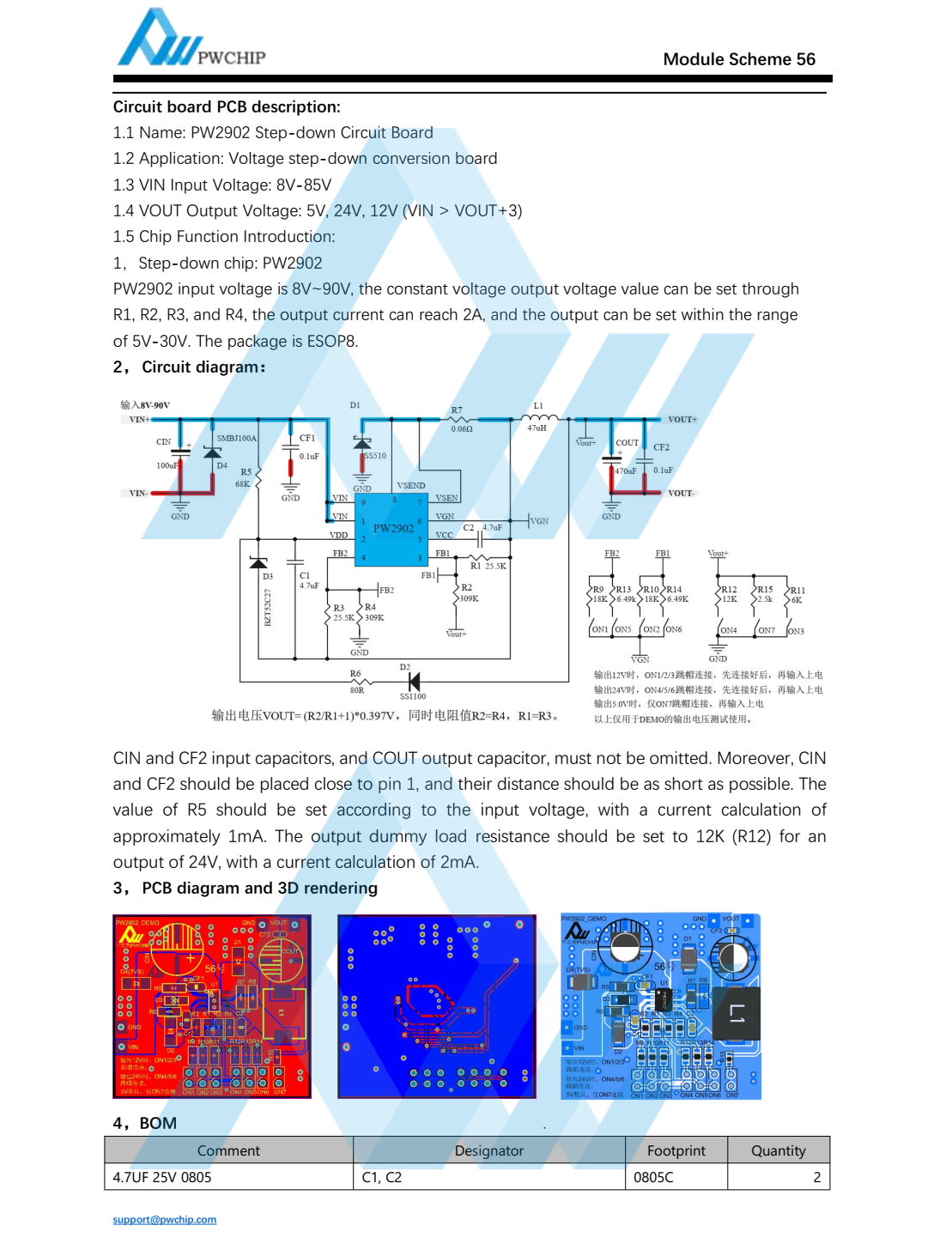

: 1.1 Name: PW2902 Step-down Circuit Board1.2 Application: Voltage step-down conversion board1.3 VIN Input Voltage: 8V-85V1.4 VOUT Output Voltage: 5V, 24V, 12V (VIN > VOUT+3)
56号密码是PWCHIP ,WWW.PWCHIP.COM.zip
1
下载
