5V-9V 2A Fast Charge PD Input to 16.8V 1A Four-Cell Lithium Battery Charging Board-Module 37

2023-05-13 11:30:00
UA
Original
496

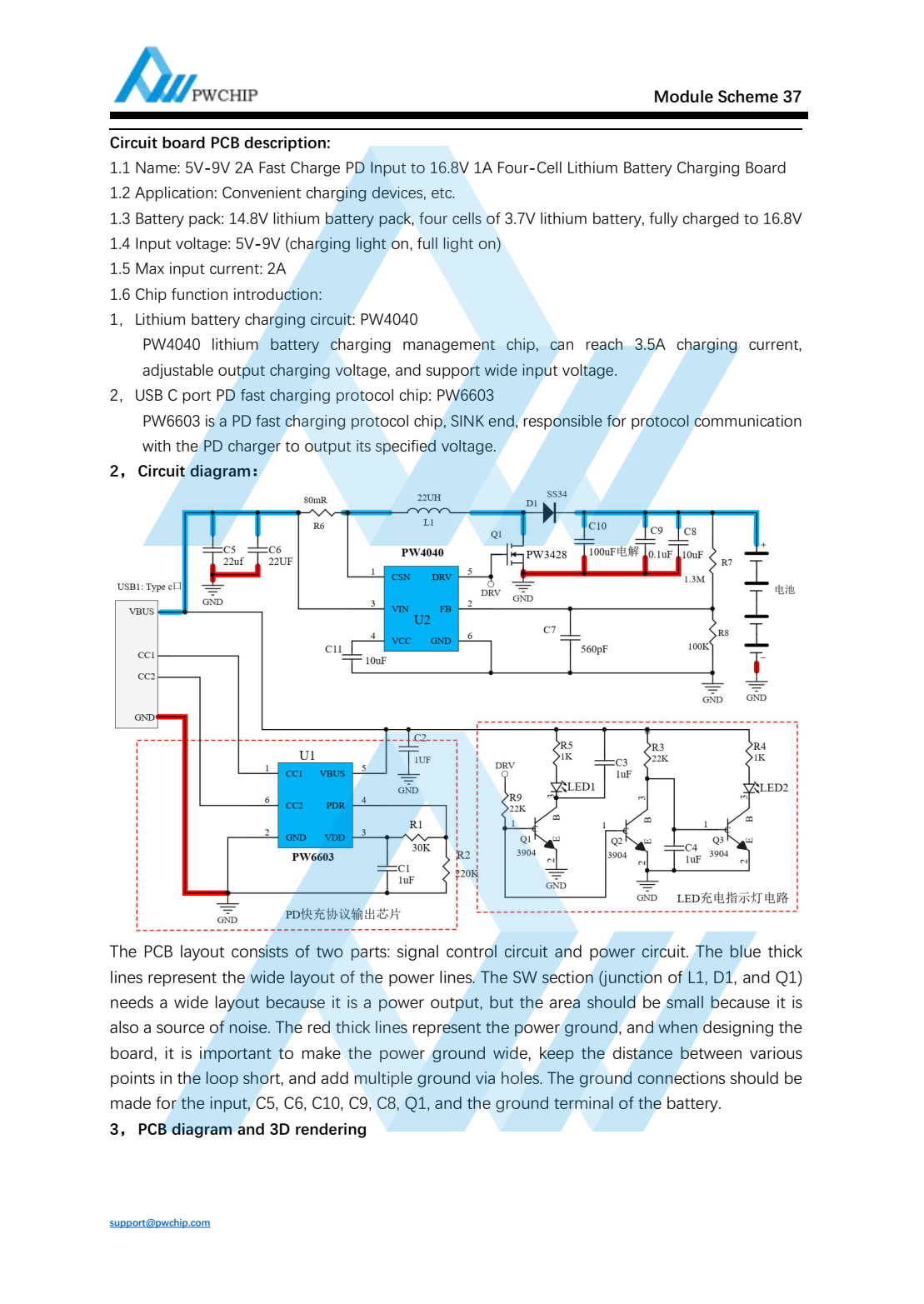

Summary : 1.1 Name: 5V-9V 2A Fast Charge PD Input to 16.8V 1A Four-Cell Lithium Battery Charging Board1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 14.8V lithium battery pack, four cells of 3.7V lithium battery, fully charged to 16.8V1.4 Input voltage: 5V-9V (charging light on, full light on)1.5 Max input current: 2A
