  • Product Name: Compatible with PD and QC fast charger 1A charging board for two-series 8.4V lithium battery-Module 21

Product Name: Compatible with PD and QC fast charger 1A charging board for two-series 8.4V lithium battery-Module 21

2023-05-12 17:38:00
杨工
Original
365

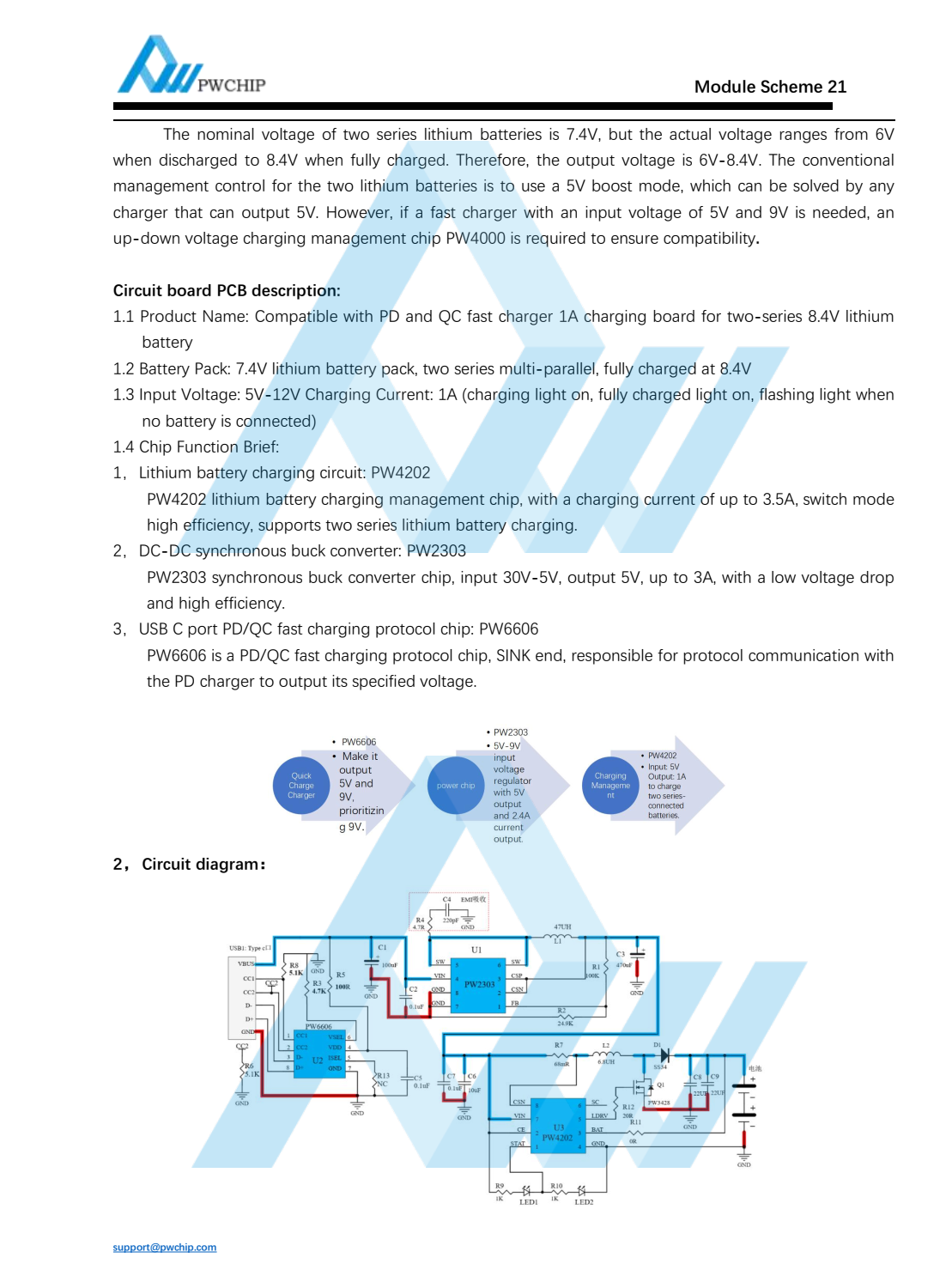

Summary : 1.1 Product Name: Compatible with PD and QC fast charger 1A charging board for two-series 8.4V lithiumbattery1.2 Battery Pack: 7.4V lithium battery pack, two series multi-parallel, fully charged at 8.4V1.3 Input Voltage: 5V-12V Charging Current: 1A (charging light on, fully charged light on, flashing light whenno battery is connected)
